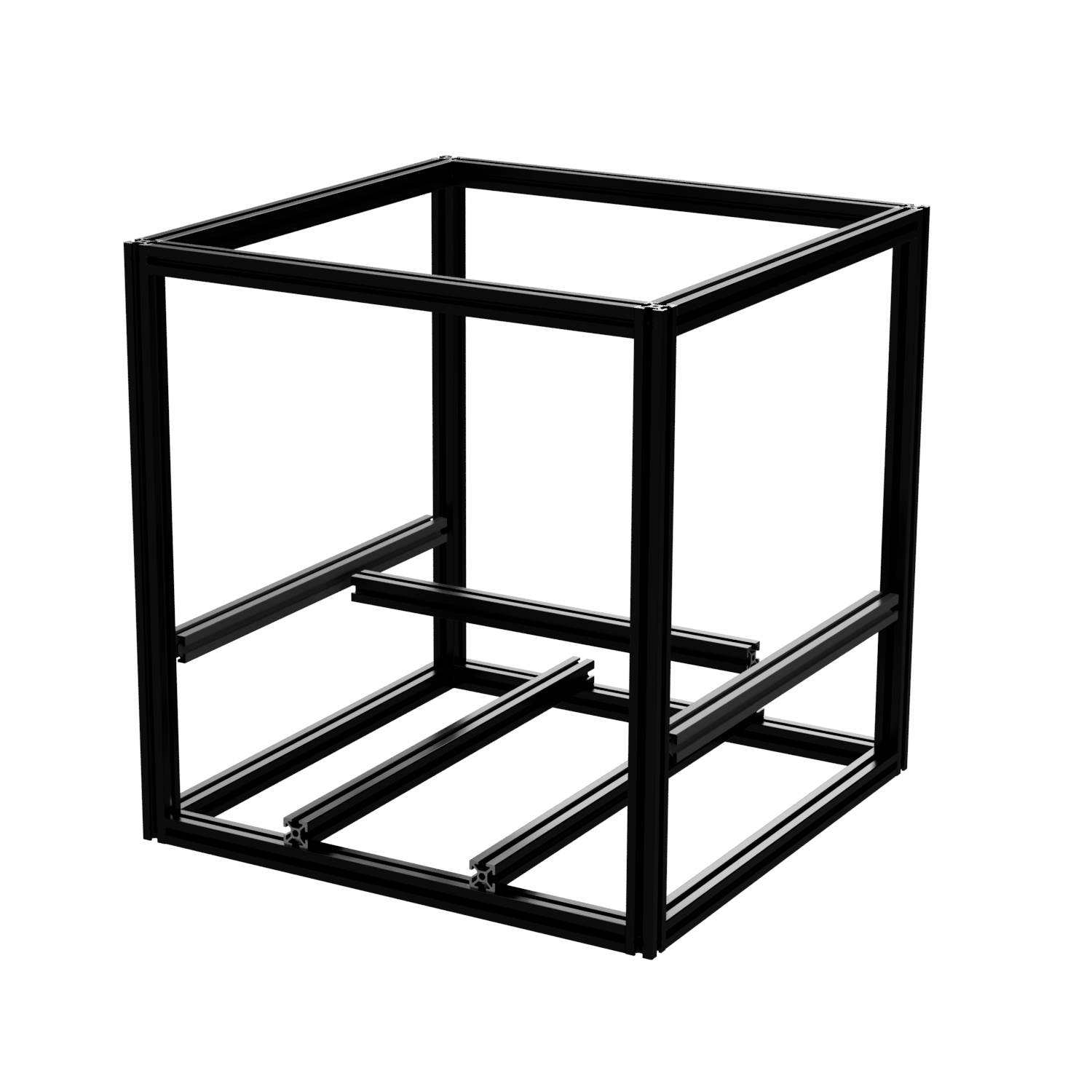

VORON 2.4 3D Printer Frame Kit

Updated design eliminates angle corners.

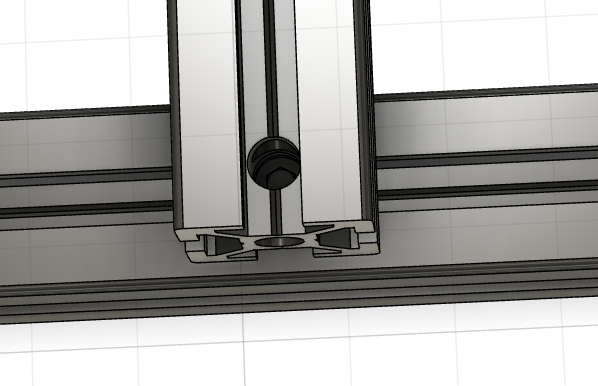

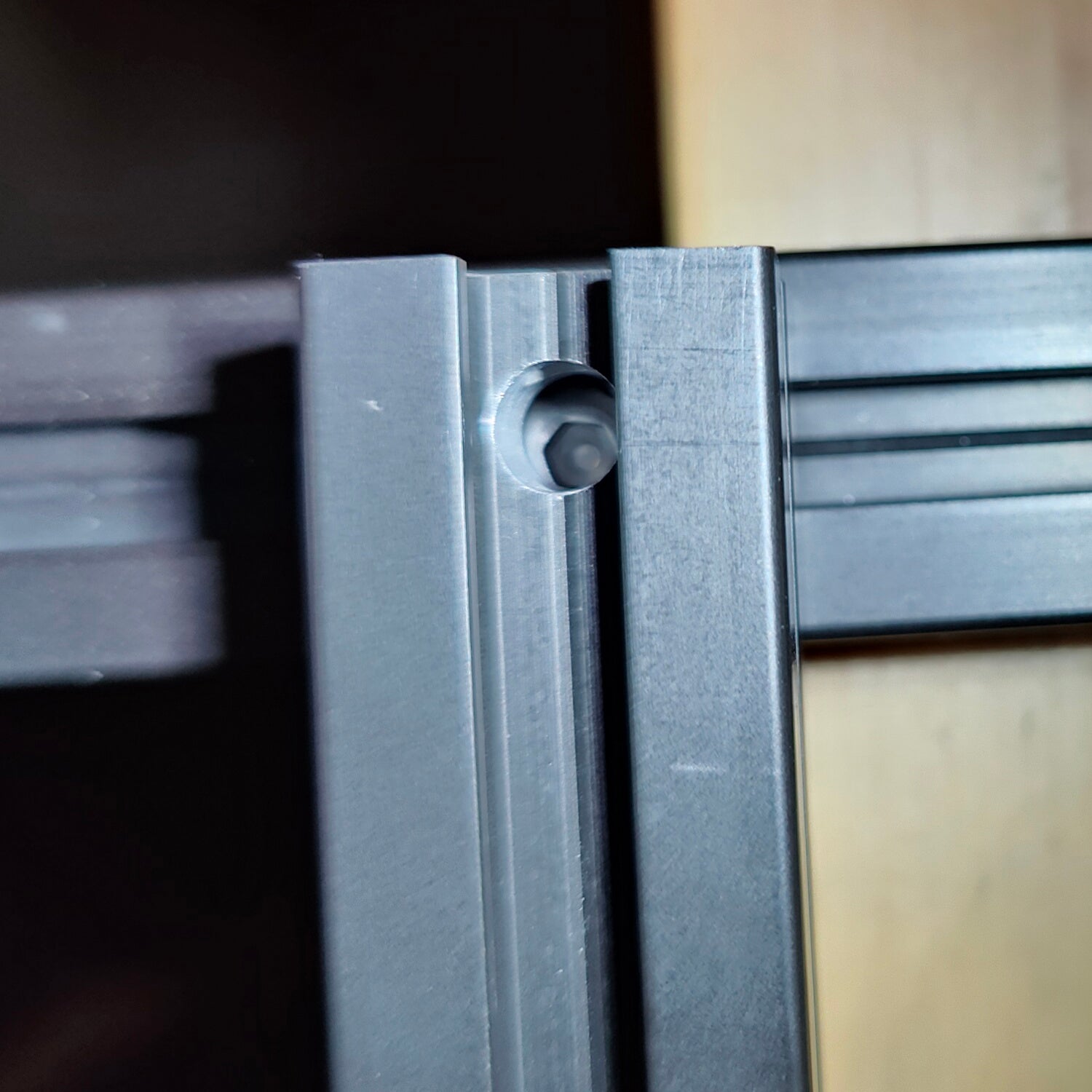

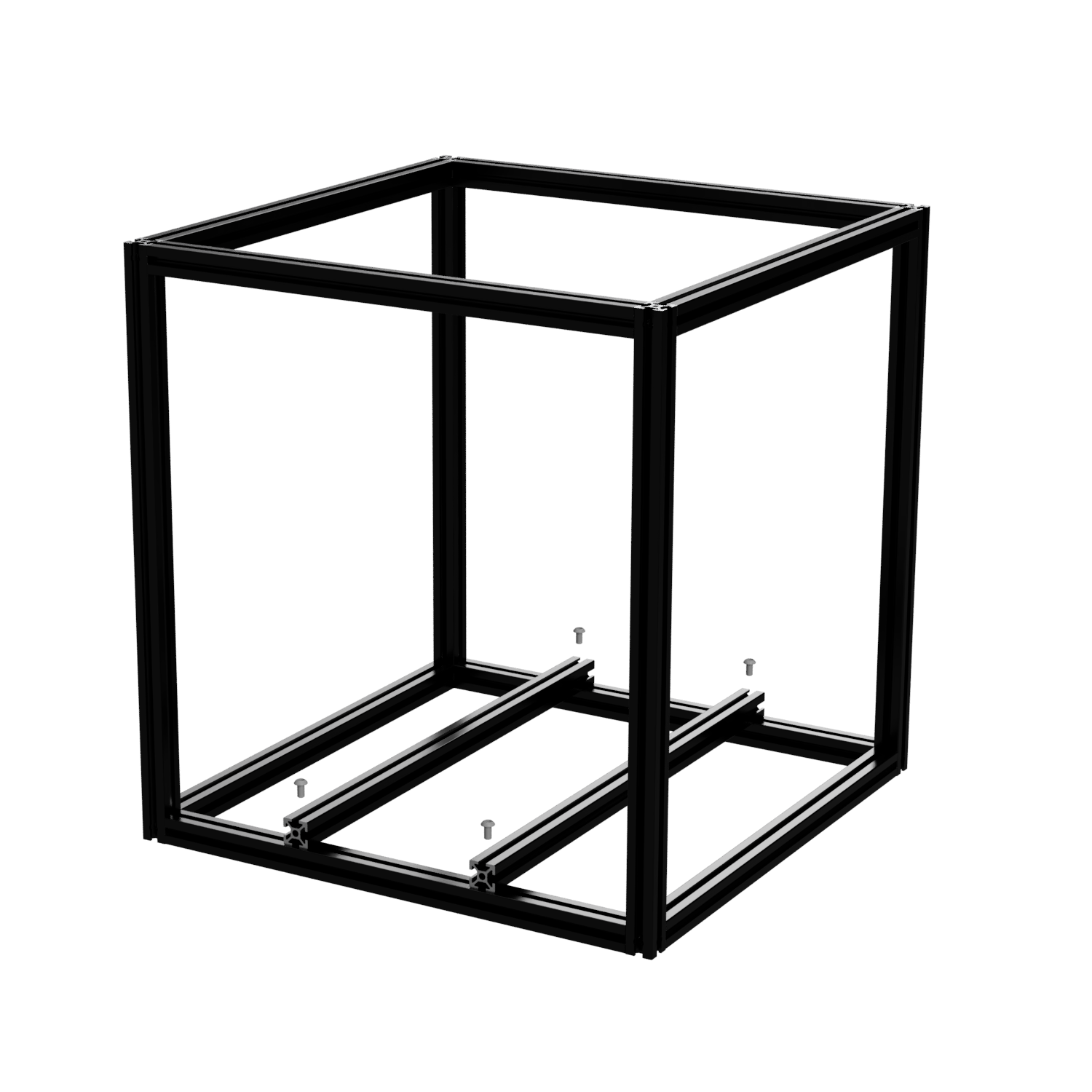

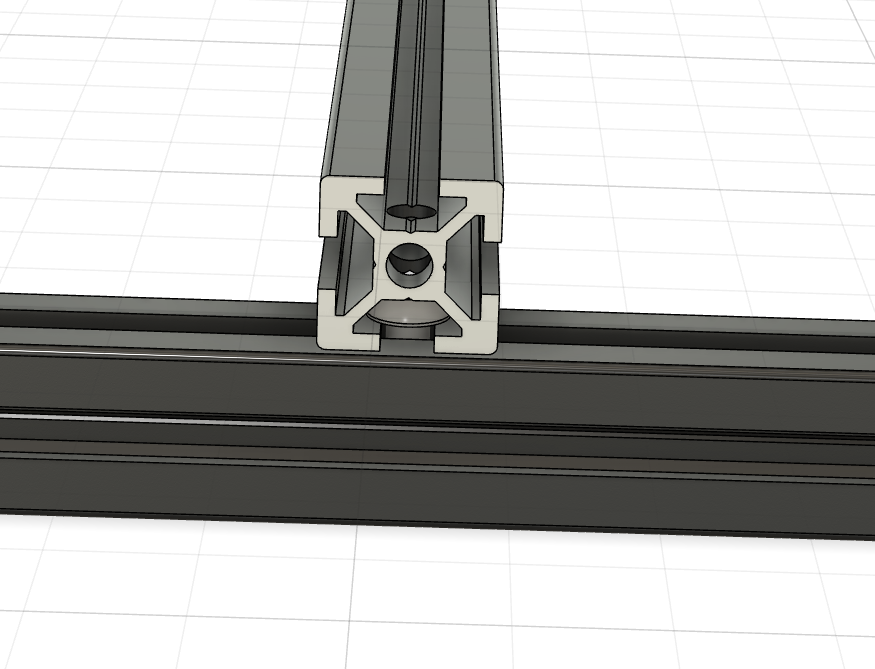

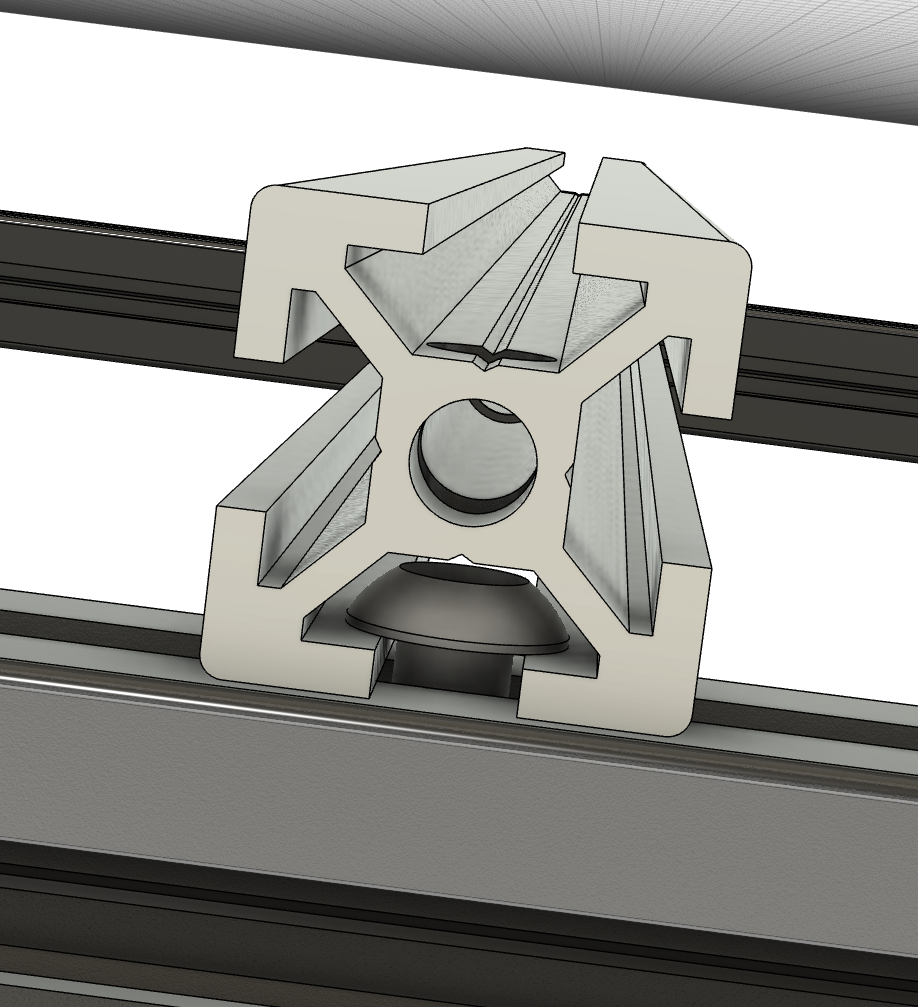

Instead of using angled connectors to mount under bed beams, the beams are extended, and are fastened directly to front/rear cube extrusions.

You can print caps to cover extrusion ends (STL is available here).

Unassembled kit includes aluminum extrusion and hardware pack.

  • Blind Joints or Misumi Corner Brackets (Cubes) versions.
  • Misumi brand extrusion
  • All pieces are cleared from the shavings and individually wrapped.
  • Extrusions are cut to size, wrench access holes drilled, ends tapped as necessary.
  • Includes all the hardware required to assembly a frame.
  • Compatible with VORON 2.4 version.

Included parts:

Part description Qty Notes
Frame
Misumi HFSB5-2020-240 1
Misumi HFSB5-2020-330 1
Misumi HFSB5-2020-350 2
Misumi HFSB5-2020-370-TPW 8 370mm tapped for M5
Misumi HFSB5-2020-405-LCH-RCH-FL-FR 2 405mm with access holes
Misumi HFSB5-2020-430-LCP-RCP 4 430mm with access holes
Misumi HFSB5-2020-390-TPW 4 390mm tapped M5
Misumi HFSB5-2020-290 1
Misumi HFSB5-2020-380 1
Misumi HFSB5-2020-400 2
Misumi HFSB5-2020-420-TPW 8 420mm tapped for M5
Misumi HFSB5-2020-455-LCH-RCH-FL-FR 2 455mm with access holes
Misumi HFSB5-2020-480-LCP-RCP 4 480mm with access holes
Misumi HFSB5-2020-440-TPW 4 440mm tapped M5
Misumi HFSB5-2020-340 1
Misumi HFSB5-2020-430 1
Misumi HFSB5-2020-450 2
Misumi HFSB5-2020-470-TPW 8 470mm tapped for M5
Misumi HFSB5-2020-505-LCH-RCH-FL-FR 2 505mm with access holes
Misumi HFSB5-2020-530-LCP-RCP 4 530mm with access holes
Misumi HFSB5-2020-490-TPW 4 490mm tapped M5
Misumi HBLCR5-B 8 Misumi Corner Bracket (Cube)
Fasteners
M5x16 BHCS 16
M5x8 BHCS 4
M5 T-nut HNTAJ5-5 4
M5x8 BHCS 4
M5 T-nut HNTAJ5-5 4

Notes:

All extrusions are cut by Misumi. Drilled and tapped in DigMach workshop.

Unused and fully intact kit in its original condition can be returned up to 30 days after the purchase.
