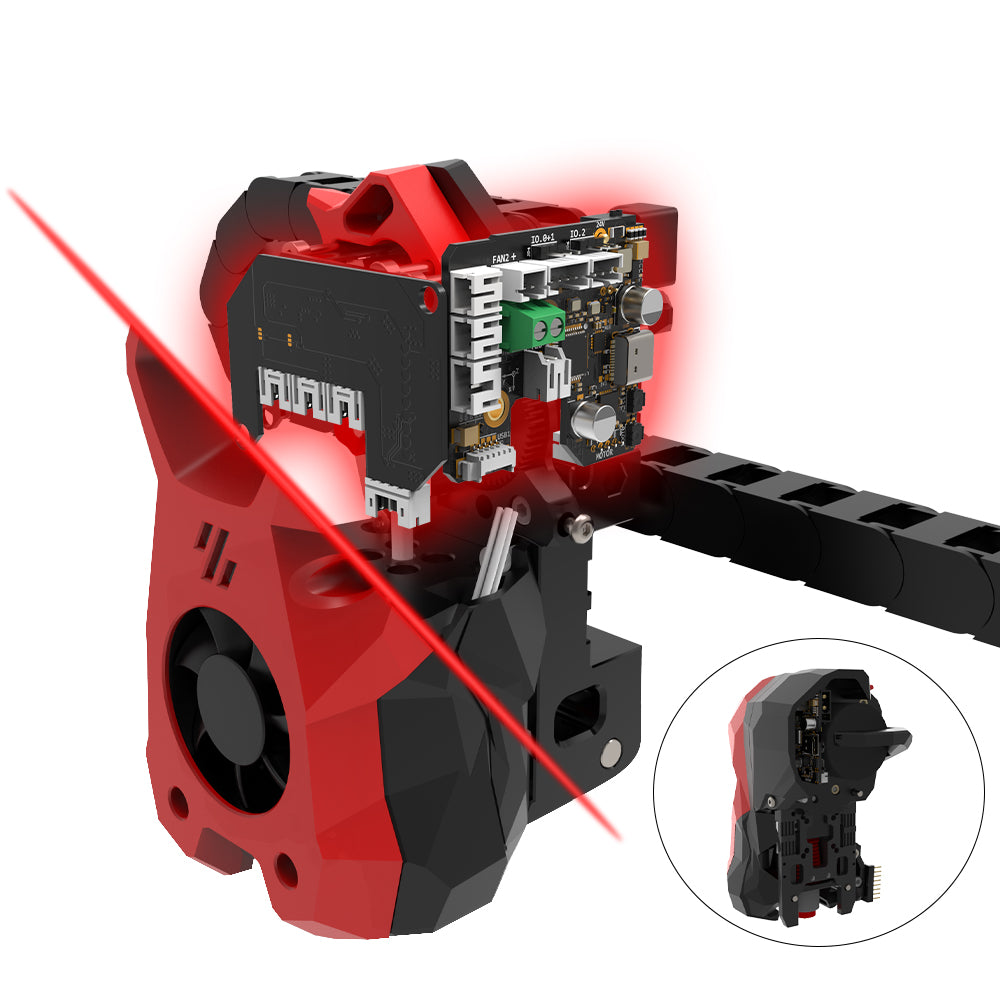

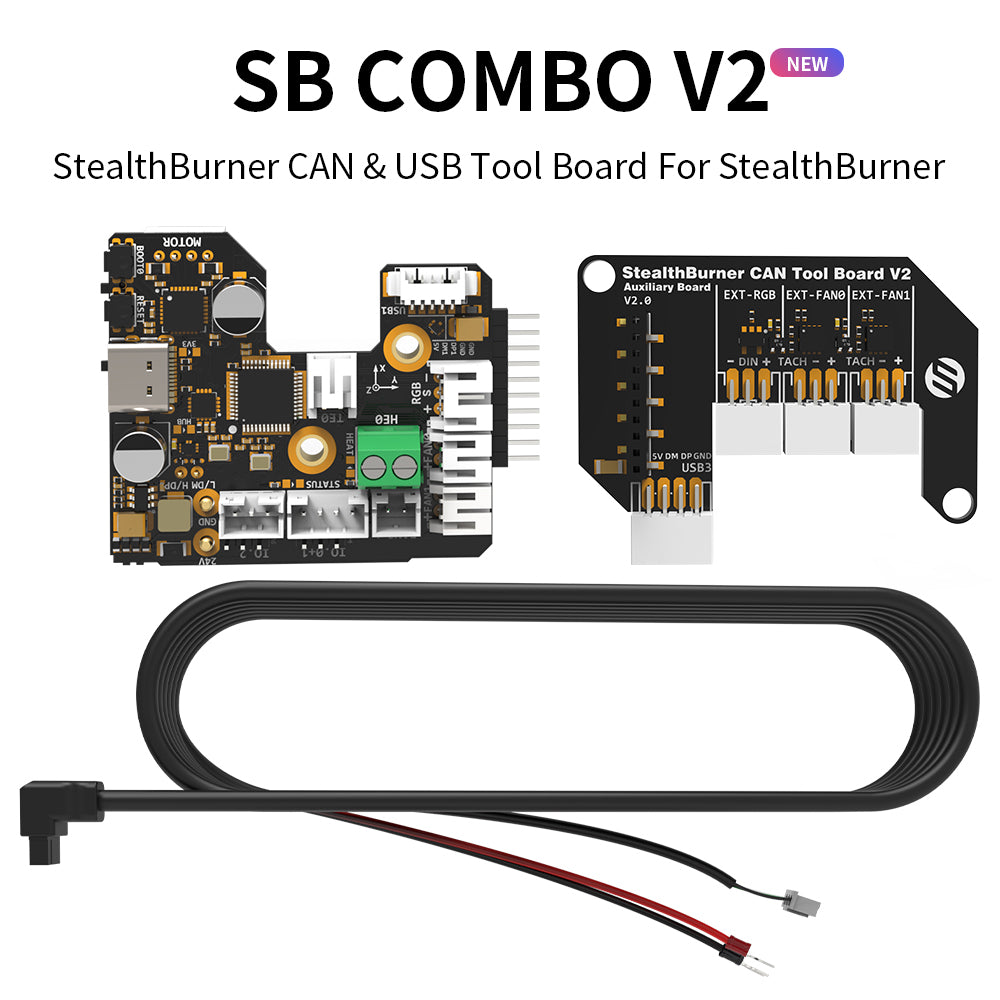

FYSETC SB COMBO V2 CAN & USB ToolHead Controller for VORON StealthBurner

SB COMBO V2 is a newly designed SB tool board running Klipper firmware, based on STM32F072. It supports two communication modes: CAN bus and USB. An onboard USB hub provides up to three USB interfaces, allowing connections to devices such as the IDM Scanner Leveling Sensor, camera, and more. The included auxiliary board can also be attached for expanded functionality.

Warning: The XT30 cable from SB1.3 is incompatible with the V2 board. Its use will result in hardware damage.

Main features:
1. STM32F072 MCU with Klipper firmware support
2. 6-layer PCB design featuring solid and tantalum capacitors
3. Two onboard M3 3.5mm isolation columns: no printed parts required, easy to install
4. Onboard CAN/USB switch
5. Onboard RESET and BOOT0 buttons for convenient firmware updates
6. Independent high-power MOSFETs for fan and heater control
7. Onboard 5V@3A DC-DC converter; peak 5V load up to 15W

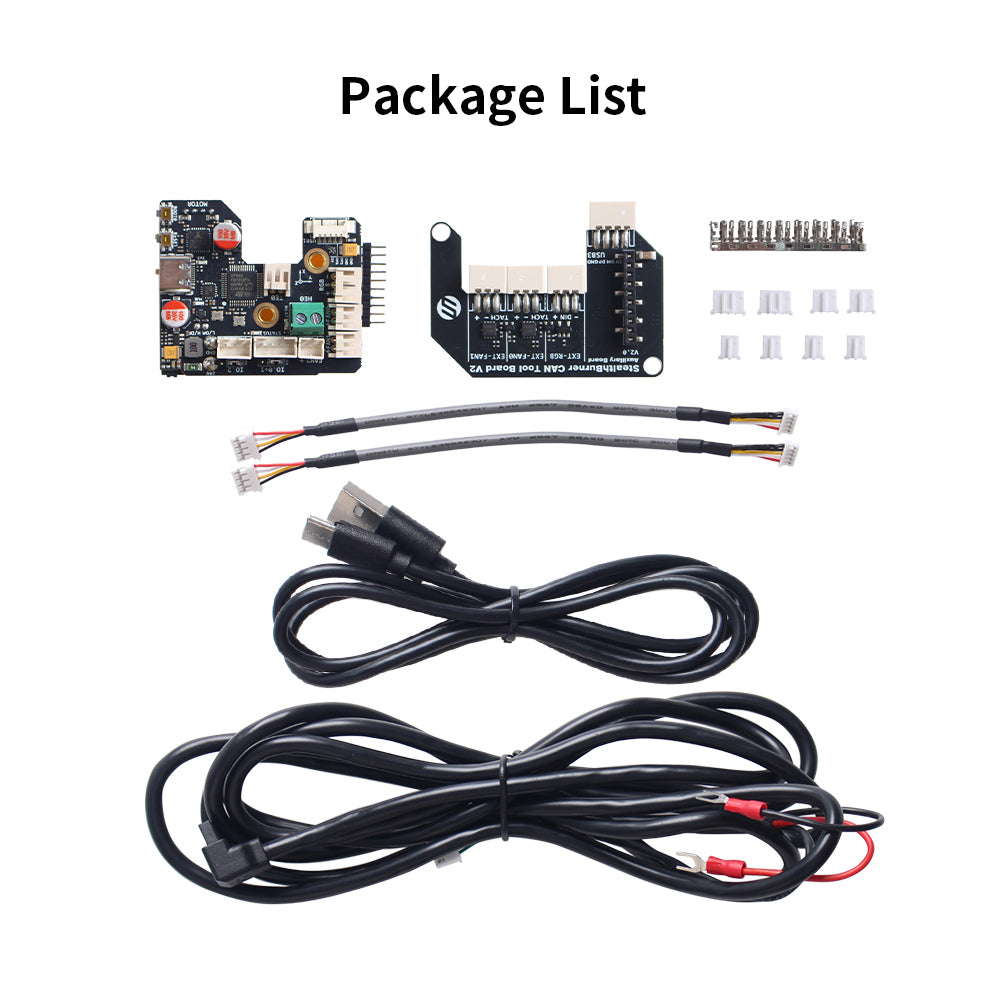

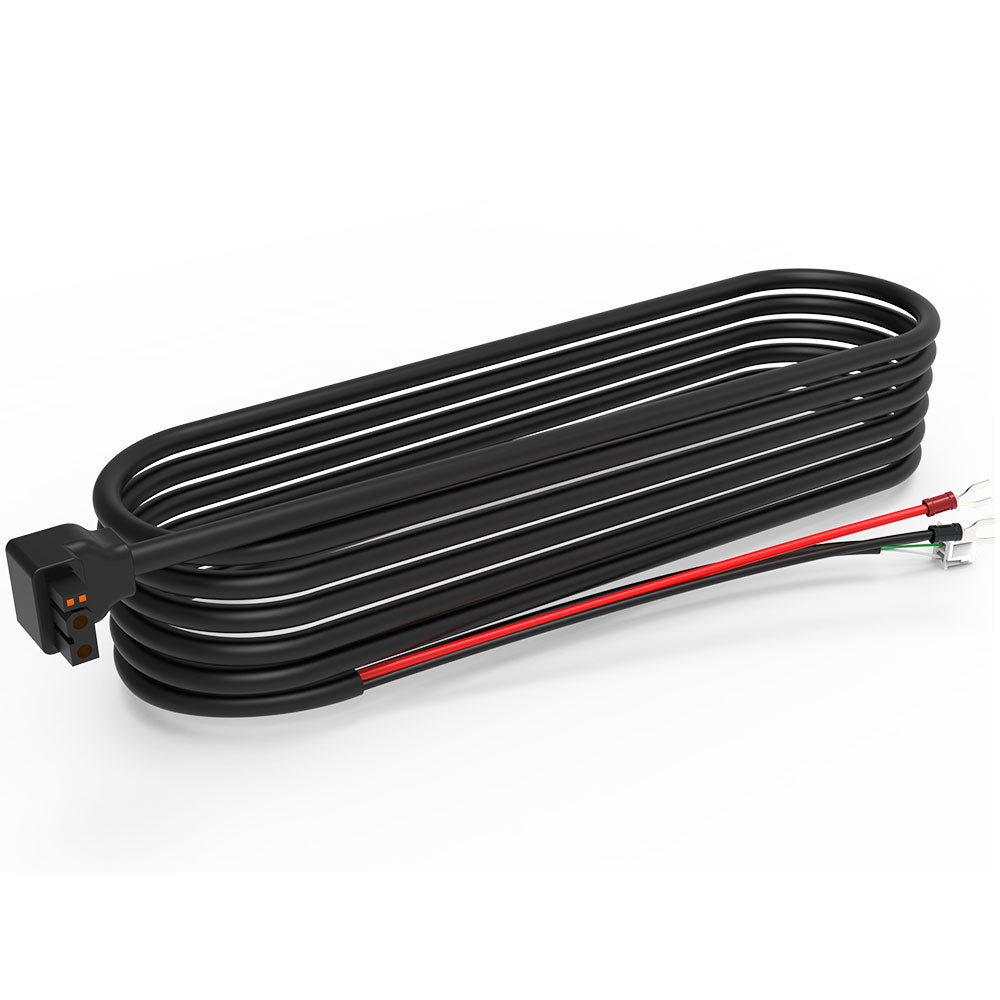

8. XT30 interface with custom cable included
9. Built-in USB 2.0 hub with three USB 2.0 ports (one located on the auxiliary board)
10. Supports both CAN and USB 2.0 connections

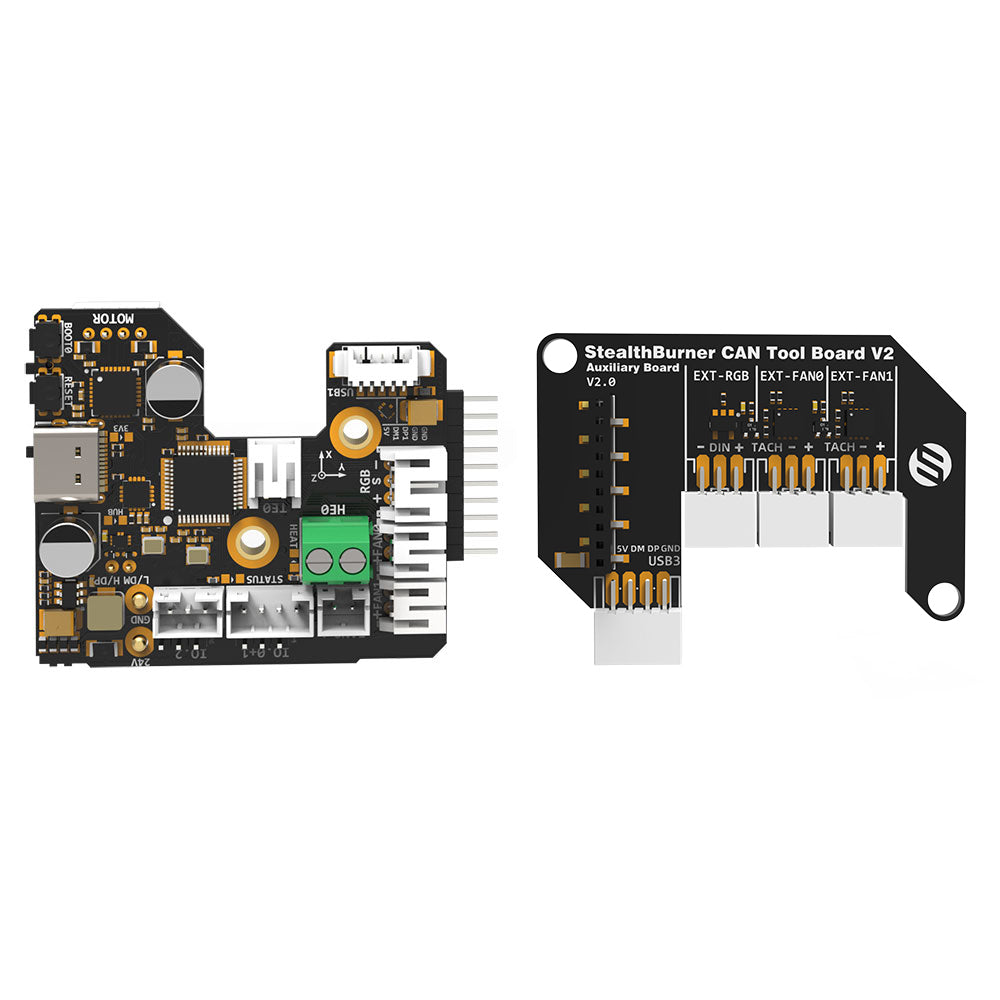

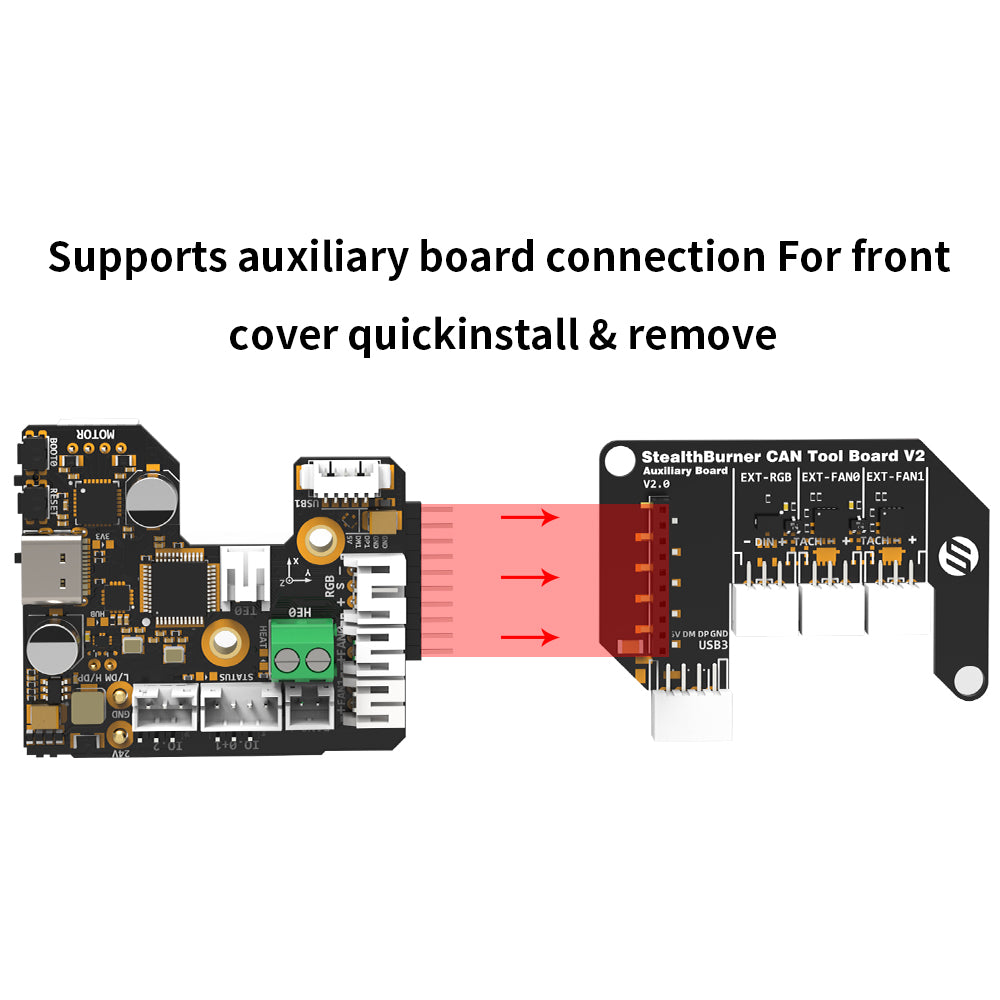

11. Auxiliary board support for quick front cover installation and removal; enables expansion with 1× USB, 2× 3-wire fans, and 1× RGB LED
12. Integrated TMC2209 stepper driver
13. Connectivity for 3× fans, 3× GPIOs with level converters, 1× RGB LED, 1× heater, 1× thermistor, and 1× status LED
14. Onboard ADXL345 accelerometer
15. USB-C port for firmware updates

More details:
https://wiki.fysetc.com/docs/SBComboV2

https://github.com/FYSETC/SB_Combo_V2
