Precision-Machined ATP5 Cast Aluminum Build Plate for VORON 2.4 & 2.4r2
- Aluminum Plate - Cast Tool & Jig. Stress relieved. ATP5 alloy.
- Optimal thickness - 5/16" (8mm).
- Surface is precisely machined.

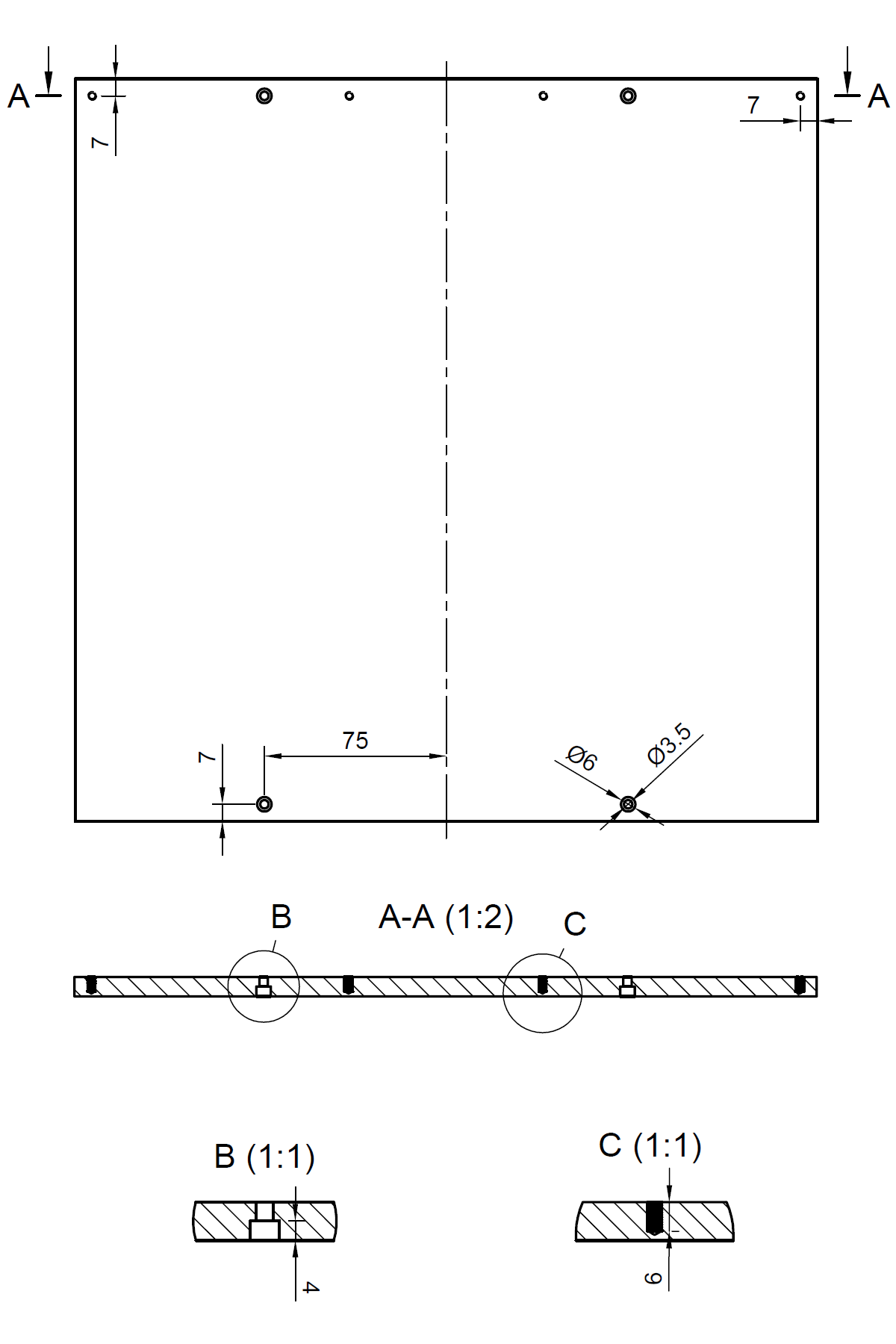

- Mounting holes are drilled and counterbored for M3 socket head cap screws (see drawing).
- Plate has blind holes on the bottom side tapped for M3 that can be used for thermal fuse attachment and grounding.
- Compatible with VORON 2.4r2
| Print size | Plate size |
|---|---|
| 250x250mm | 10"x10" |
| 300x300mm | 12"x12" |
| 350x350mm | 14"x14" |
Notes:
1. This is an aluminum build plate only, no heater or any electronics is included.
2. Plate flatness tolerance is 0.381mm. Gauge tolerance is ±0.127mm. Cut tolerance -0/+0.125"
Frequently Asked Questions
Is this build plate compatible with the VORON 2.4r2?
Yes. This plate is designed for both the VORON 2.4 and VORON 2.4r2. Mounting holes are drilled and counterbored to VORON spec for M3 socket head cap screws.
Does this plate work with a PEI spring steel flex sheet?
Yes. The machined top surface is flat and clean, making it an excellent base for a magnetic PEI flex plate system. We sell the Energetic double-sided PEI flex plate separately.
Is a heater or silicone pad included?
No — this listing is for the aluminum build plate only. For a complete bed setup, you will also need a silicone heater pad and a thermal fuse. Both are available in the Build Plates collection.
Where does this ship from?
We stock and ship all orders from our Seattle-area warehouse.
